Waste tyre recycling pyrolysis plant is for recycling waste tyres to renewable energy through a thermal cracking process. The whole process of waste tyre recycling pyrolysis plant is under sealed environment with tail gas cleaning system, without generating secondary pollution to the air.

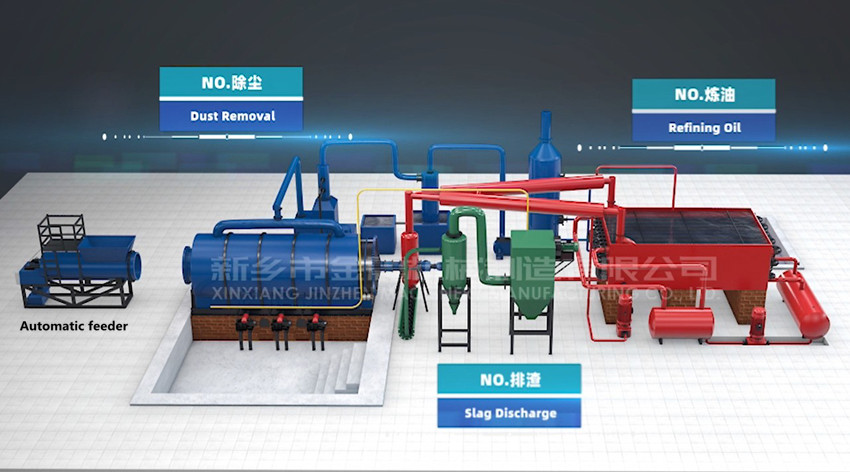

Work Process
Design Feature
1. automatic feeding, less labor, low production costs;
2. Horizontal design, 90% oil rate, 100% conversion rate, high efficiency, considerable profits;
3. Good oil, good quality control, can replace the use of national standard diesel;
4. Safety: Automatic submerged arc welding technology, ultrasonic nondestructive testing, manual and automatic safety devices;
5. Exhaust gas recovery system: fully burned after recovery, save fuel and prevent pollution;
6. Insulation shell design: national patent, excellent insulation effect, good energy saving effect.
7. Thorough cooling effect of condensers, high oil yield, good oil quality, long service life, easy to clean;
8. Water membrane type desulfurization and de-dusting: National patent, can effectively remove acid gases and dust and reach related national standards.
Technical Parameter
NO. | ITEM | Specification |
1 | Suitable Raw Materials | Waste tyre,rubber |
2 | Operating Mode | automatic Operation |
3 | Structure | Horizontal Type Revolve |
4 | Loading and discharging | Fully Automatic Feeding and Discharging under High Temperature at Same Time |
5 | Capacity(24h) | 20ton,30ton, 50ton, 60ton, 80ton |
6 | Work Pressure | Slightly Negative Pressure |
7 | Oil Yield of tyres | 40%-45% |
8 | Reactor Rotational Speed | 1R/M |
9 | Installation Power | 110kw |
10 | Cooling Method | Cycle water |
11 | Type of Drive | Sprocket Wheel |
12 | Heating Method | Hot Air |
13 | Noise dB(A) | ≤85 |
14 | Main Reactor Weight (MT) | About 20Mt |
15 | Total Weight(MT) | About 45Mt |
16 | Installation Space Required | 60m*20m |
17 | Manpower | 2/shift |
18 | Shipment | Depends on the capacity |
19 | Delivery time | ≤30Days |
