Pyrolysis Plant is used for recycling waste tire, waste plastic, waste rubber to fuel oil. According to the actual situation in every country and district, we developed different models of Batch Pyrolysis Plants for waste tires, rubber and plastic with daily capacity 5 -10 tons.

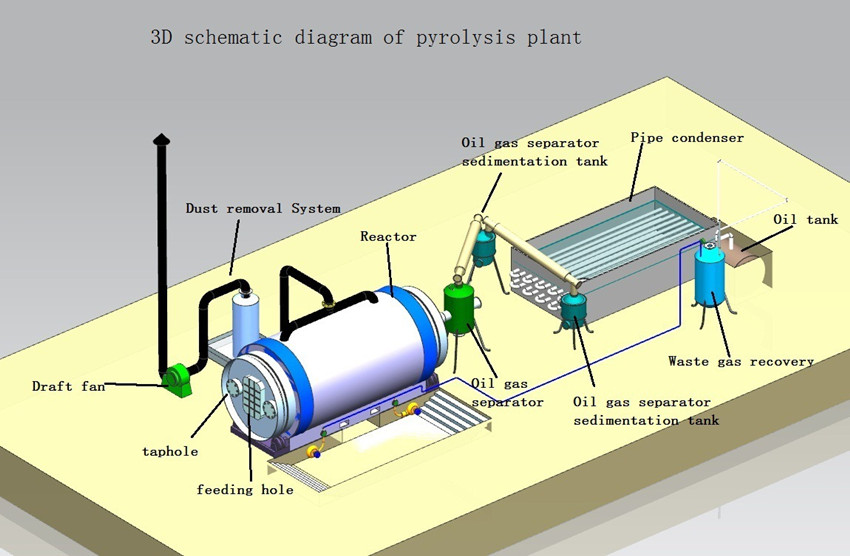

Flowchat
Feature
1. Oval door or Full open door: Domestic patent, convenient and fast to load materials, fast cooling, and it is convenient and rapid to produce steel wire;
2. Thorough cooling effect of condensers, high oil yield, good oil quality, long service life, easy to clean;
3. Water membrane type desulfurization and de-dusting: National patent, can effectively remove acid gases and dust and reach related national standards;
4. Large furnace door, deslagging in center: High temperature, closed, automatic slag-out, clean, dust-free, rapid and time-saving;
5. Safety: Automatic submerged arc welding technology, ultrasonic nondestructive testing, manual and automatic safety device;
6. Exhaust gas recovery system: Fully burned after recovery, save fuel and prevent pollution;
7. Direct heating: Increase the heating area of the furnace, heating up fast, easy to control the temperature, and effectively extend the service life of equipment;
8. Insulation shell design: National patent, excellent insulation effect and good energy-saving effect.
Technical Parameter of Waste Tyre Pyrolysis Plant
NO. | ITEM | PROJECT | |
1 | Equipment Model | JZ-5 | JZ-10 |
2 | Door Model | Full Open Door/Oval Open Door | Full Open Door/Oval Open Door |
3 | Suitable Raw Materials | Tyre/Rubber | Tyre/Rubber |
4 | Structure | Horizontal Type Revolves | Horizontal Type Revolves |
5 | Reactor Size | Φ2200*6000mm | Φ2600*6600mm |
6 | Capacity for One Batch | 3ton, 5ton | 10ton, 12ton, |
7 | Oil Yield of Tires | 40%-45% | 40%-45% |
8 | Work Pressure | Normal Pressure | Normal Pressure |
9 | Reactor Rotation Speed | 0.4R/M | 0.4R/M |
10 | Fuels Choice | Coal, Wood | Coal, Wood, Gas, Oil |
11 | Power | 18KW/H | 25KW/H |
12 | Cooling Method | Water Cycling | Water Cycling |
13 | Type of Drive | External Annular Gear | External Annular Gear |
14 | Heating Method | Direct | Direct |
15 | Type of Installation | With Foundation | With Foundation /Integrated Base |
16 | Noise dB(A) | ≦85 | ≦85 |
17 | Operation Mode | Intermittent Operation | Intermittent Operation |
18 | Total Weight(MT) | 25 | 40 |
19 | Installation Space Required | 30m*10m | 30m*10m |
20 | Manpower | 2~3/batch | 3~4/batch |
21 | Shipment | Ф2200×6000=1*40HC+1*40FR | Ф2200×6000=1*40HC+1*40FR |
