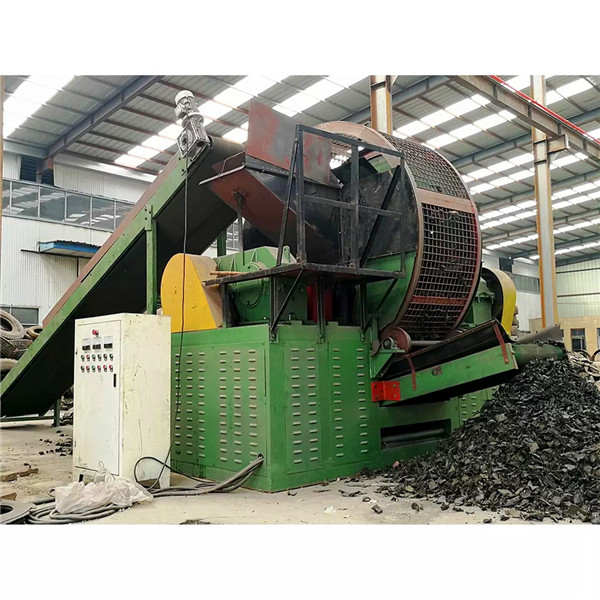

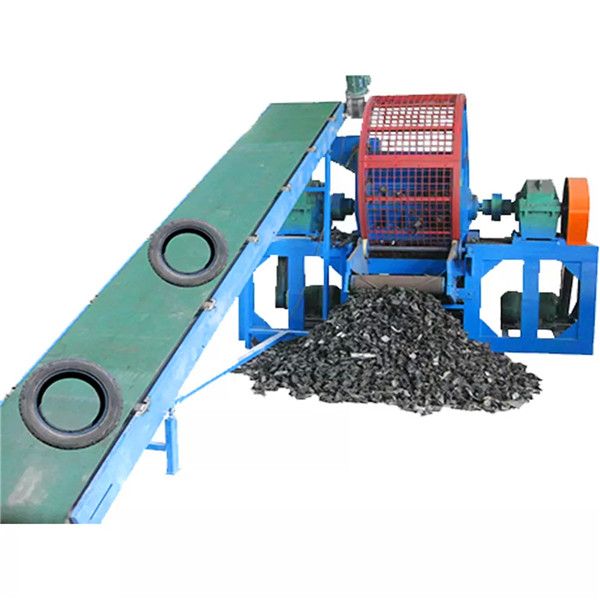

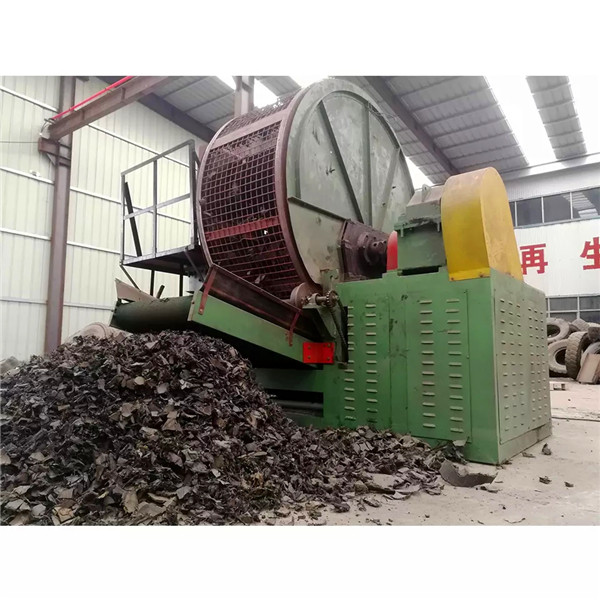

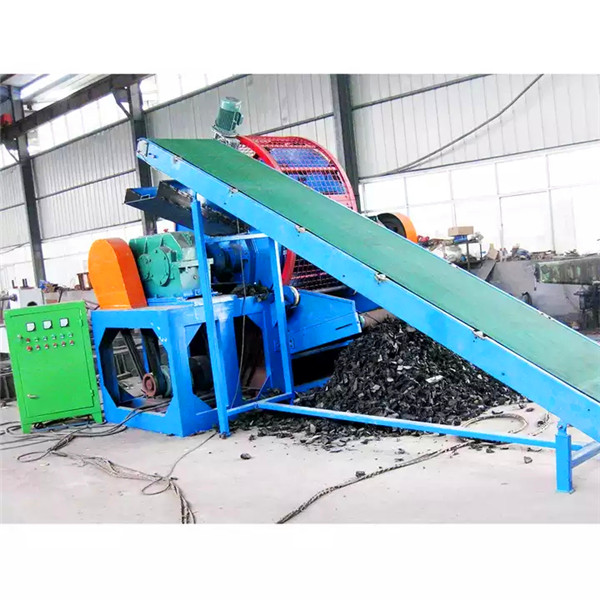

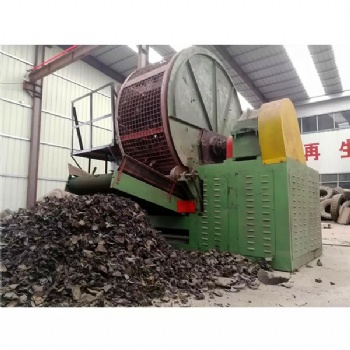

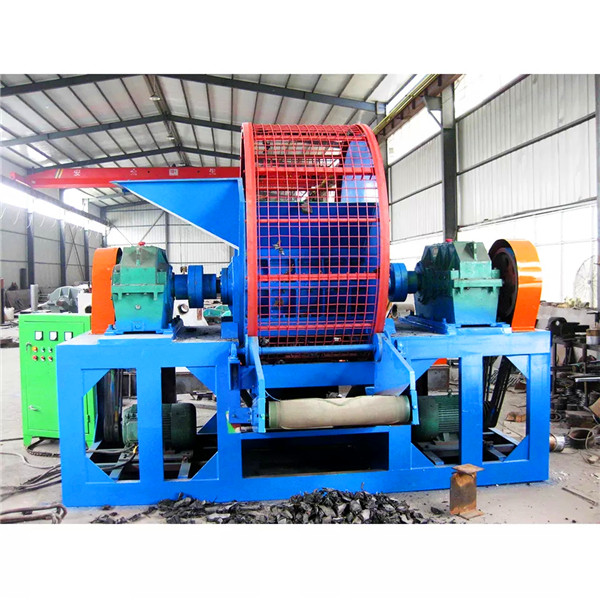

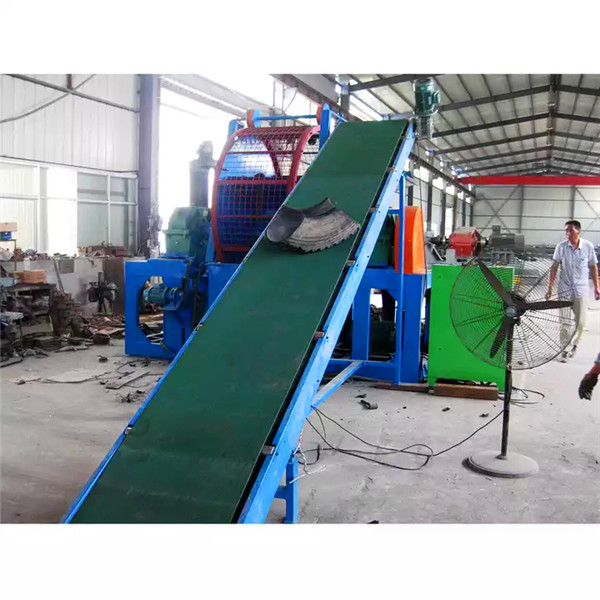

Scrap Tire Shredder Waste Tyre Shredding Machine is used to crush plastic, rubber, fiber, paper, wood, large hollow materials (large containers such as plastic drums) and various mixed wastes, especially those containing metal, or pre-crushed tools such as sand. scrap. The crushing hollow material can be equipped with a press device to increase the output. A rotating screen can also be added to control the discharge size. When the double shaft shredder is running at low speed, noise and dust can reach high environmental standards.
Technical Specification
| Model number | 900 | 1200 |
| Input size | Less than 900 | Less than 1200 |
| Discharge size | 50—300mm(adjustable) | 50—300mm(adjustable) |
| Motor power | 30*2 kw | 75*2 kw |
| Dimension | 3450*2100*2400mm | 4100*2730*3300mm |
| Amount of waste tire | 800-1500T/h | 2000-3800kg/h |
| Screen power | 1.5kw | 5.5kw |
| Main shaft speed | 19rpm | 22rpm |
| Screen speed | 4rpm | 25rpm |
| Number of blades | 18pcs, made of alloy steel, welded | 25pcs, made of alloy steel, welded |
| Gearbox | Harden gears, large torque | Harden gears, large torque |
| Weight | 5.8T | 15.6T |
Appliaction
Double Shaft Shredder normally is used to shred small to large-sized relatively light or hollow products, such as car/ truck tires, film, plastic/ steel drums, scrap TV/computer, scrap fax/ printing machines, etc.
