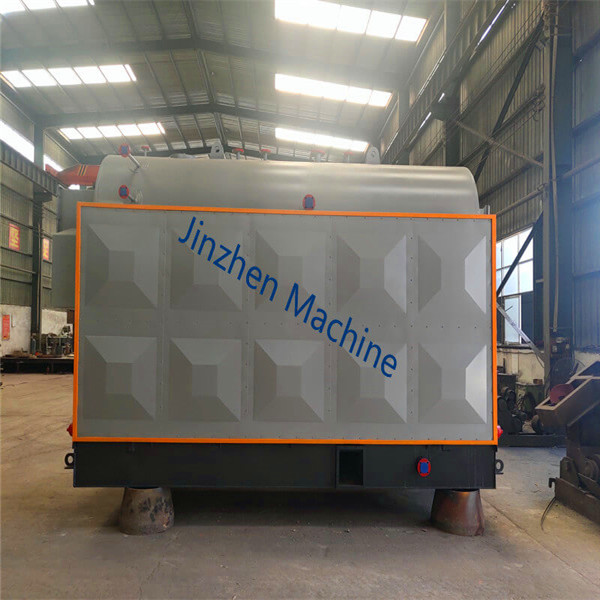

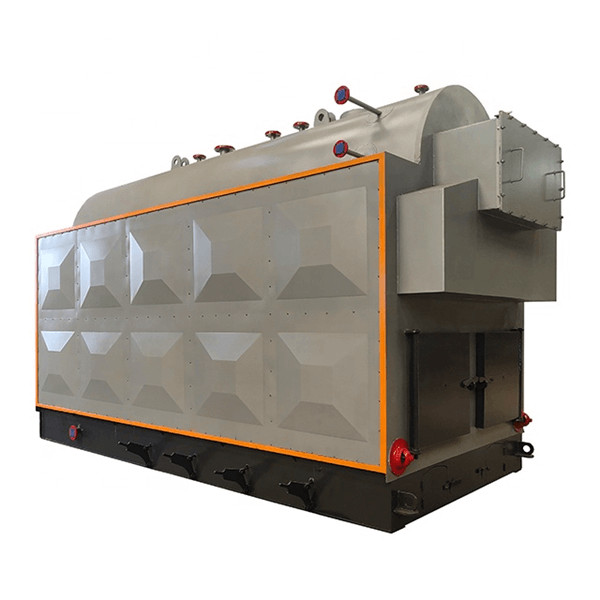

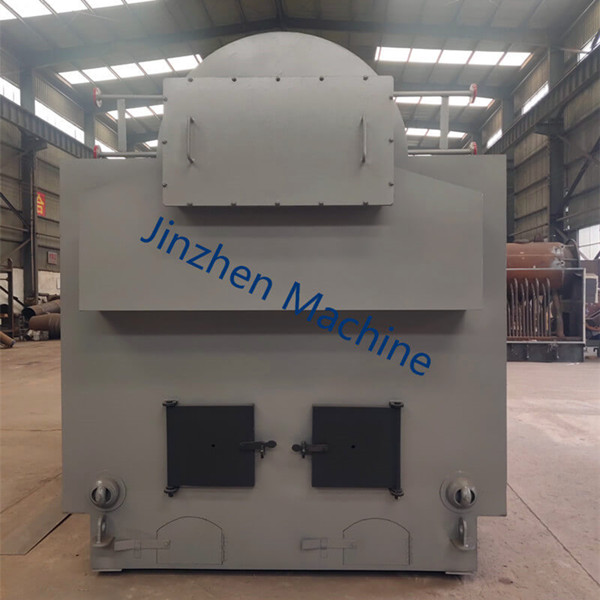

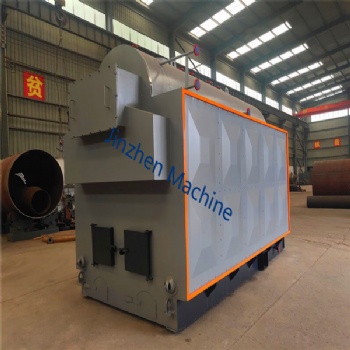

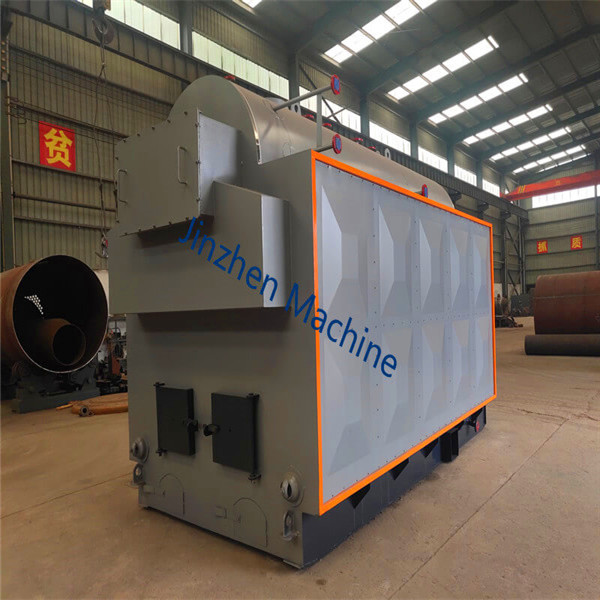

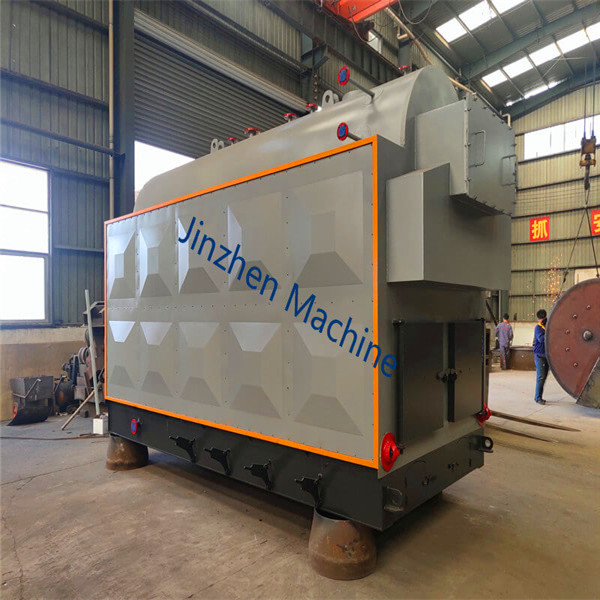

Wood Fired Steam Boiler

Steam capacity: 1 ton/hr--4 ton/hr
Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar)
Temperature:184C,194C,204C
Fuel: wood,firewood,logs,rice husk, sawdust,sugarcane bagasse,biomass pellet
EMAIL US INQUIRY

DZH series steam boiler is manual operation boiler which adopting manual fuel feeding, manual slag removing. The fuel can be firewood, wood logs, biomass pellets, peanuts shell, grain shell, etc. Equipped with special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.), it can realize automatic fuel feeding, automatic ash removing. It is the most popular products in Southeast Asia, Central Asia, Africa.

Feature

DZH boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. Comparing with DZL series boiler, DZH series boiler has better adaptability on fuels, it can fire coal, rice husk, nut shell, sawdust, waste wood pieces, also can fire wood logs, straws. This will markedly reduce user’s fuel consumption cost, increase company’s benefits. Only need 1 worker to operate the fuel feeding and slag removing.

Technical data

Model	DZH0.5-1.0	DZH1-1.25	DZH2-1.25	DZH3-1.25	DZH4-1.25
Steam Capacity	500kg/h	1000 kg/h	2000 kg/h	3000 kg/h	4000 kg/h
Working Pressure	1.0 Mpa	1.25 Mpa	1.25 Mpa	1.25 Mpa	1.25 Mpa
Steam Temperature	184℃	194℃	194℃	194℃	194℃
Available Fuel	Biomass, Coal, Wood Logs, Crop Shell, etc.
Operation Method	Manual Fuel Feeding, Manual Slag Removing

Application scope

This steam boiler is widely used for chemical fertilizer factory, refinery, feed factory, coating factory, plastic factory, glass factory, glass factory, sulfuric acid plant; greenhouse cultivation, seed breeding, livestock slaughter plants, agriculture and animal husbandry; manufacturing mill, textile factory, dairy factory, shoe factory, ceramics factory, home with the factory, the tire factory, brewery, food factory, and tape factory, metal factory, factory floor, cabinet factory, wooden factory; school, hotel, bath center, etc.; can also be used for heating, heating, heat preservation, drying, curing, hot water supply, etc.
