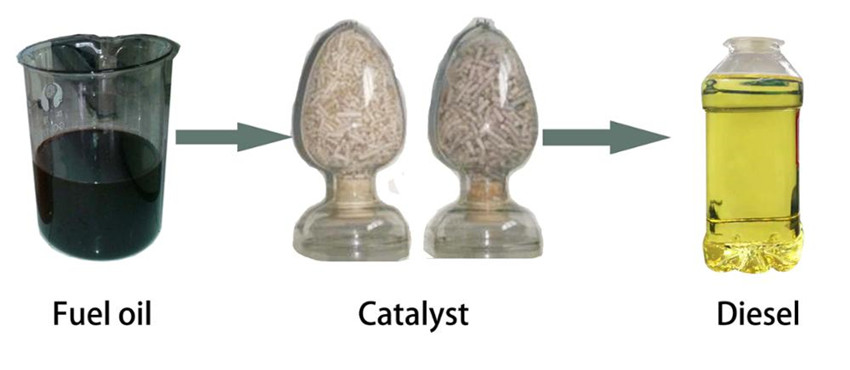

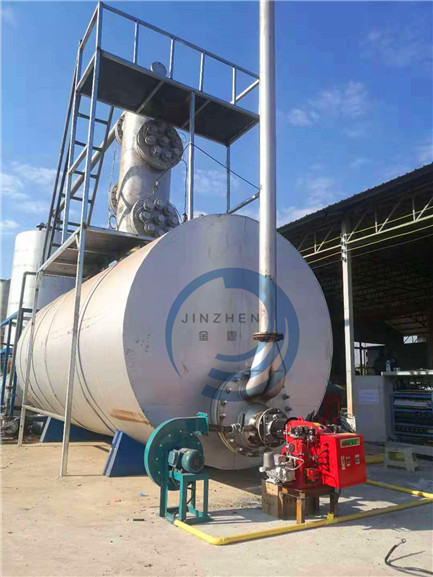

Waste oil distillation plant, also called used oil refining plant, it is specially designed for waste oil and pyrolysis oil to diesel. This whole refining process includes distillation, cooling, decoloring and deodoring system. The final diesel product could be used as alternative fuel in diesel burners, steam boiler, heavy machinery and agricultural machinery,etc. Generally,the diesel output is about 80-85%. The refining residues can be used as asphalt for paving ,or directly sold to asphalt refineries for further refining.

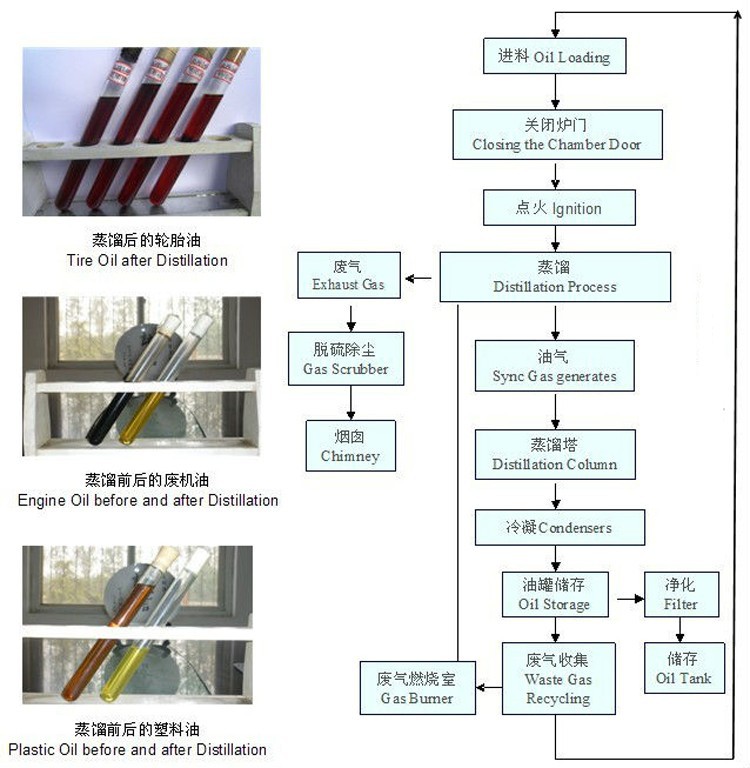

Work process
Advantage of waste engine oi distillation plant
1. Unique and original manufacturing and technology with our own formula of our equipments in China;
2. Unique horizontal design, high oil output with about 90% oil yield and 100% conversion rate, highly effective and profitable;
3. Good quality end product oil as the substitution of standard diesel oil in usage;
Automatic submerged welding technology, ultrasonic nondestructive testing, both manual and the automatic safety devices;
4. Sync gas recycling system: fully burned after recycling and utilization, saving fuel and preventing pollution;
5. National patent, unique heat insulation shell: high efficiency temperature keeping, excellent energy-saving effect;
6. High condensing efficiency condensers with more oil output. Good quality oil, longer lifetime, and easy to clean;
7. National patent water film smoke scrubbers: efficient removal of the acid gas and dust of the smoke, environmental friendly to meet related national standards.
Technical Parameter
NO. | Item | Specification |
1 | Suitable Raw Materials | Waste engine oil, Pyrolysis fuel oil, crude oil |
2 | Structure | Horizontal Type |
3 | Capacity(24 hours) | 5ton, 10ton |
4 | Work Pressure | Normal Pressure |
5 | Oil Yield | 80%-90% |
6 | Power | 18 kw/H |
7 | Cooling Method | Cycle water |
8 | Condensers | 4 pieces of Vertical condensers |
9 | Emission Treatment | New DE-sulfurization Smoke Scrubbers |
10 | Heating Method | waste oil fired |
11 | Type of Installation | With Foundation |
12 | Noise dB(A) | ≤85 |
13 | Dimension of Reactor(mm) | Ф2200×6000 |
Ф2500×8800 | ||
14 | Operating Mode | Semi-continuous Operation |
15 | Main Chamber Weight (MT) | 10~13Mt |
16 | Total Weight(MT) | 25~35Mt |
17 | Installation Space Required | 35m*15m |
18 | End Product | Non-standard diesel oil |
19 | Manpower | 1~2 person/shift |
20 | Shipment Requirement | 2*40HC=Ф2200×6000 |
1*40HC+1*40FR=Ф2500×8800 |
